FX-Audio D802

Mã sản phẩm: FX-Audio D802

Tình trạng: Còn hàng

Giá: 3.200.000 VNĐ

Package will come with:


1, Amplifier unit*1


2, Remote controller*1


3, USB cable or coaxial cable or optical cable(optional)


4, DC32V/5A Power supply*1


5, English manual*1


6, Package gift box*1


7, Remote controller battery CR2025 not included due to shipping by air restriction


USB/Coaxial/Optical Input


32V 5A high-power power supply


2x80W Super High power remote digital amplifier

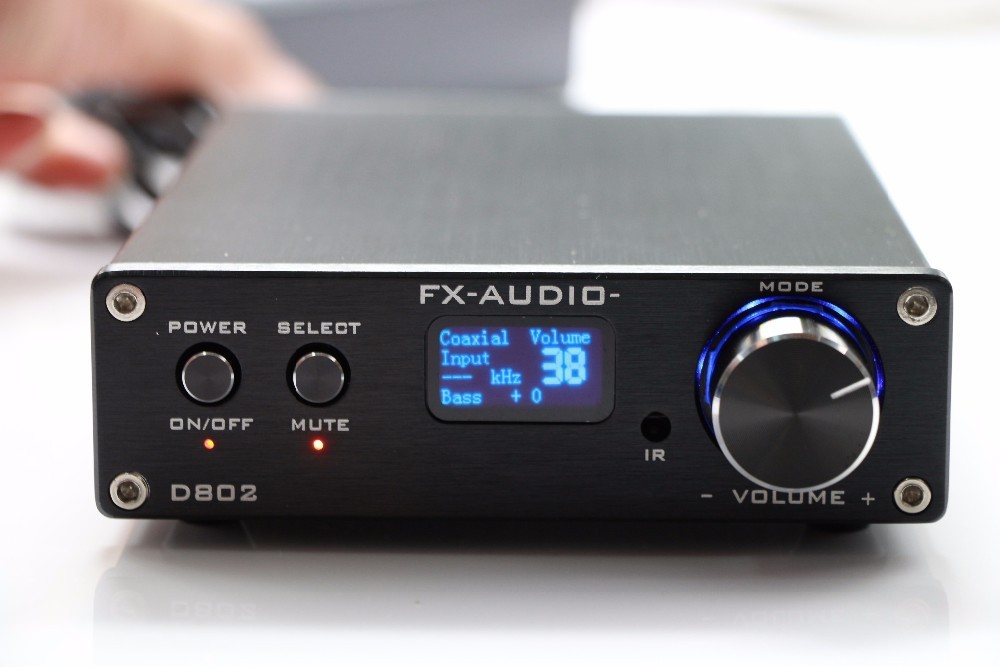

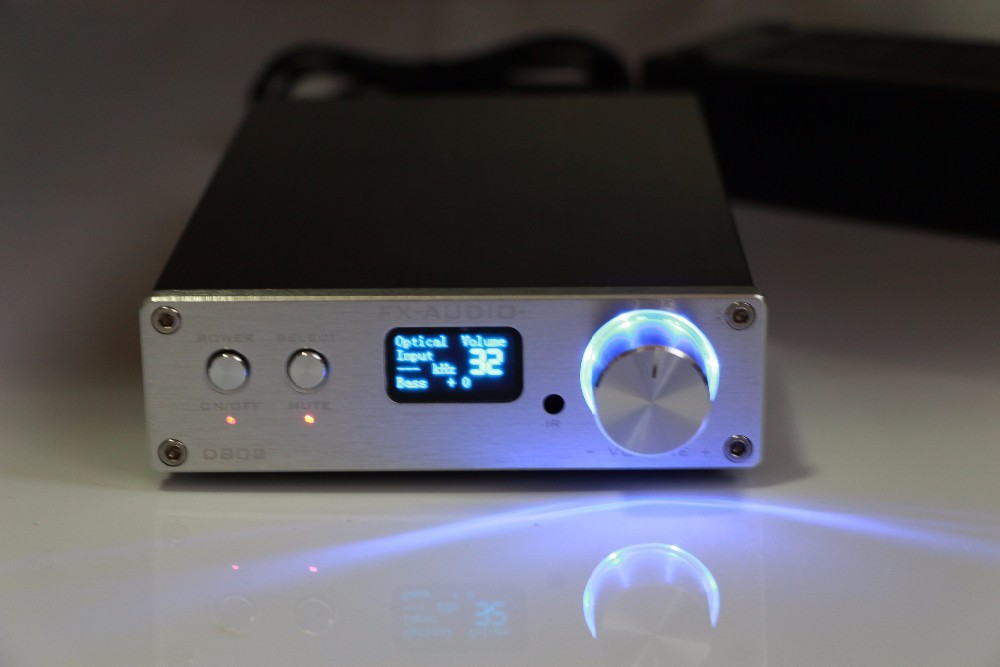

OLED cold light display screen


1,we send the amplifier in what color we have in stock in random,

if you didn't tell us what color you prefer to,thank you!


2, if you want to order this amplifier with bluetooth@3.0,please

order it here for $124.56. D802C with Bluetooth@3.0


Performance Parameters:

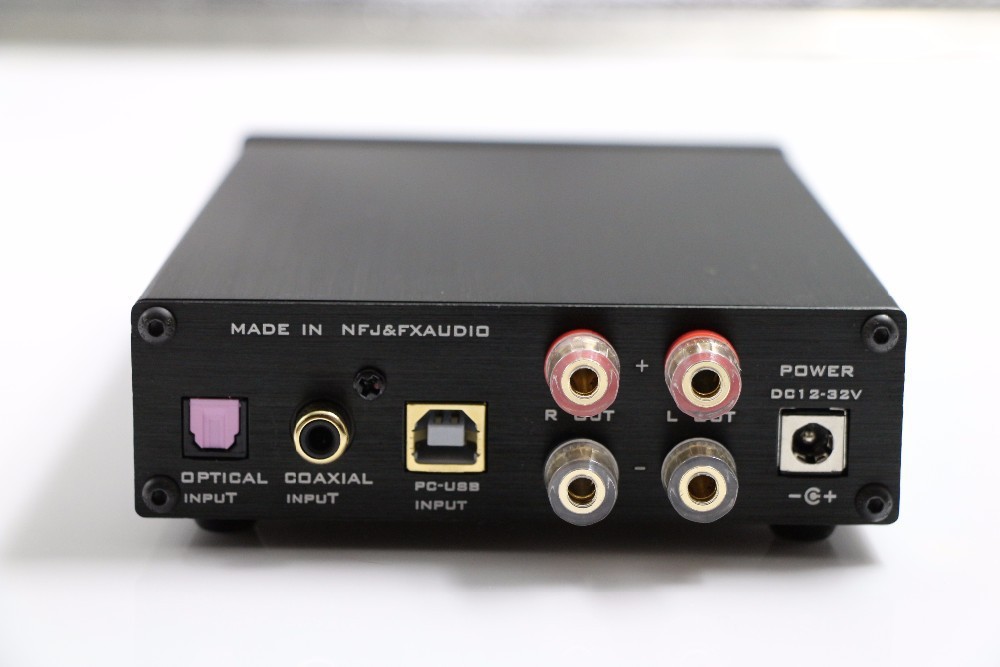

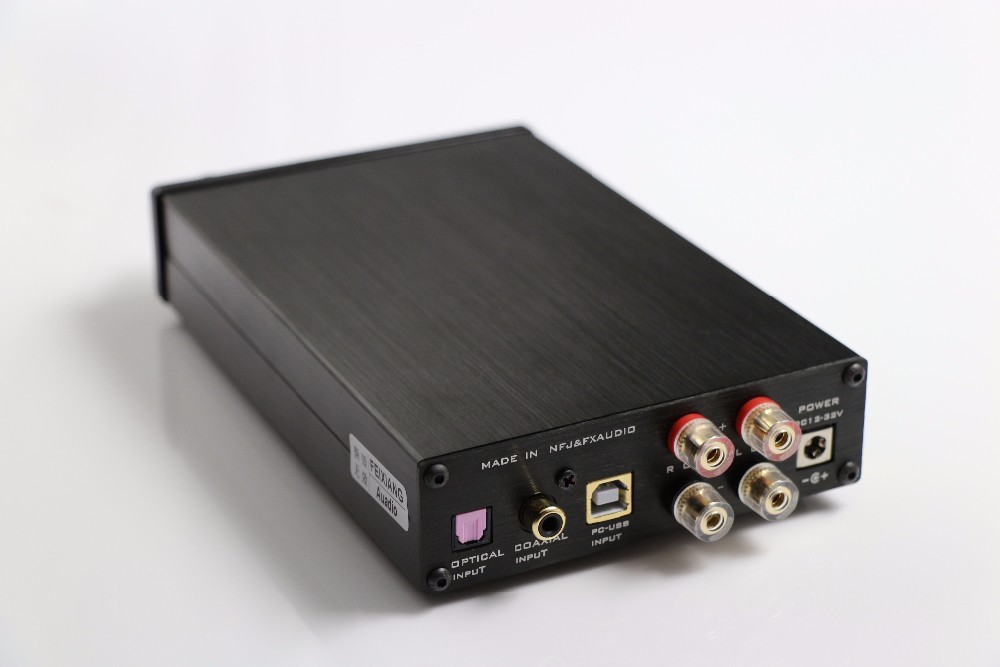

Input Interface: Optical*1+coaxial*1+PC USB*1(Support partical Mobile OTG)

Output Interface: 2-channel

Sampling rate:44.1-192KHz(Coaxial/Optical) + 44.1-192KHz(PC USB)

Bit Width: 16-24Bit

Frequency response:18Hz-22KHz


Weight: 0.9Kg(Unit only)

Length of circuit: 1meter

Appearance process: Panel drawing technology

Power out:80W+80W(4ohm)/ 50W+50W(8ohm)

Rated power: DC32V, AC110V-250V

SNR(singnal to noise):100db


The D802 is a pure digital high power amplifier that adopts ST "Sound Terminal" digital audio amplify technology,
it supports the current world main audio modes including coaxial,optical,PC USB.
Suitable for use with computers,LCD TV,set-top Box,Blue-ray,HD-DVD etc. equipments, rich input mode,
there is always at least one that can meet your need.
2*80W 2 channel output can satisfy most listeners' requirements.
D802 amplifier adopts ST high quality digital amplifiers series--STA326 power amplifier,
the function is much better than STA350BW,perfectly support any brand PWM regulation programme
(Three increment,phase shift,or Two increment regulation technology.).
ST adopts the advanced BiCMOS-DMOS technology to produce this amplifier ,
this technology can promit integrating DMOS power stage,bipolar transistor & CMOS on the same IC.
Main components selection:
Main core chip IC groups:
Digital audio receiver:AKM4113 USB 2.0
audio controller: VT1630A
Power amplifier:STA326
Filter Capacitor:Japan NICHICON audio Capacitor,3pcs parallelling Capacitor up to 5400uF
